Industry Leading Anti-Ram Vehicle Crash Gates

Gibraltar is a world leader in perimeter control, force protection, and crowd control innovations, and nowhere is this expertise more notable than in the G-5000 Series of Anti-Ram Crash Gates. Available in a variety of widths, foundation types, operation configurations and opening styles, the G-5000 Series is the industry’s most customizable, most secure anti-ram crash gate. As always, each of the G-5000 Series Anti-Ram Crash Gates are engineered crash rated and fully certified to prevent unauthorized access to the most sensitive areas.

About the G-5000 Series

Gibraltar’s crash-rated G-5000 Series gates are available in engineered crash ratings from M30 (K4) to M50 (K12), the latter capable of halting a 15,000-pound vehicle traveling at speeds up to 50 mph. This superior stopping power makes the G-5000 series ideal for use protecting vehicles, assets, and personnel in a wide range of sectors including military bases, airports, power plants, water treatment plants, chemical facilities, and more. To that end, the G-5000 Series meets all requirements for Anti-terrorism and Force Protection (ATFP) and Hostile Vehicle Mitigation (HVM).

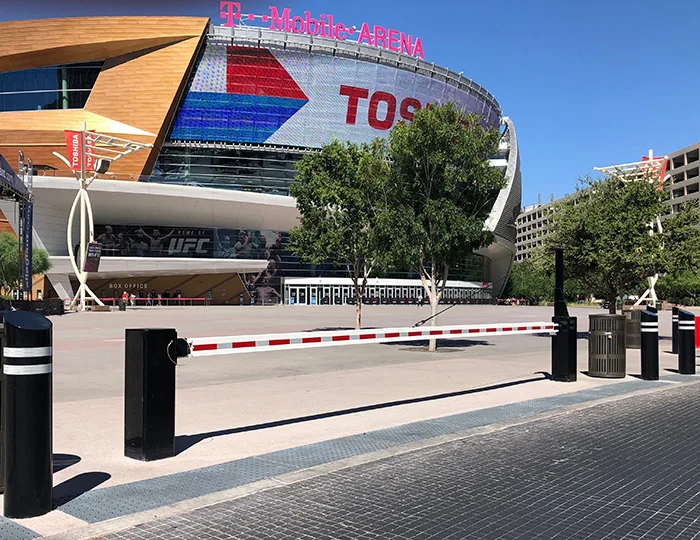

anti ram bollards and swing gate

Crash Gate Configurations

The G-5000 Series Anti-Ram Crash Gates are available in numerous access configurations, including sliding V-track, sliding cantilever, double leaf swinging, and single leaf swinging models. Clients may choose from either standard mount or shallow mount, which allows supremely efficient and cost-effective installation without disrupting existing utilities. In addition, all crash gates are available in either electric or manual operating modes and retrofit to multiple fascia, including palisade fencing, chain link, and more.

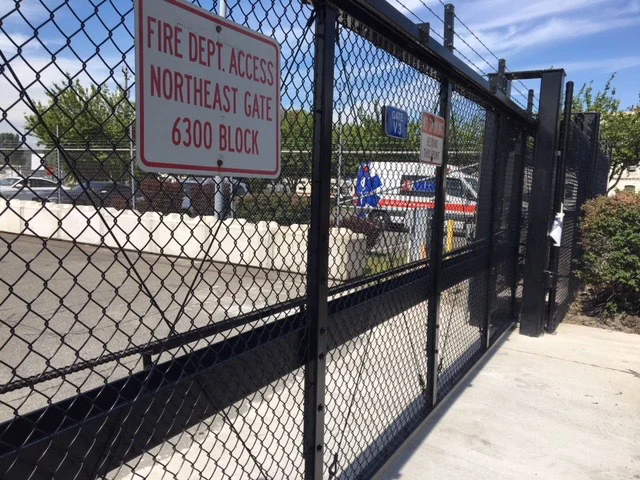

vehicle gate barrier

G-5500 Anti-Ram Sliding Crash Gate

The G-5500 is Gibraltar’s highest crash-certified model tested to ASTM F2656-07 M50 P2 with a maximum penetration of 1.152 meters. This rating signifies that the G-5500 will halt a 15,000-pound vehicle traveling at 50 mph, providing ultimate force protection, asset protection, and facility protection from high-speed vehicle and terrorist threats. For this reason, the G-5500 is ideal for placement at high-risk security checkpoints, including military and sensitive industrial applications.

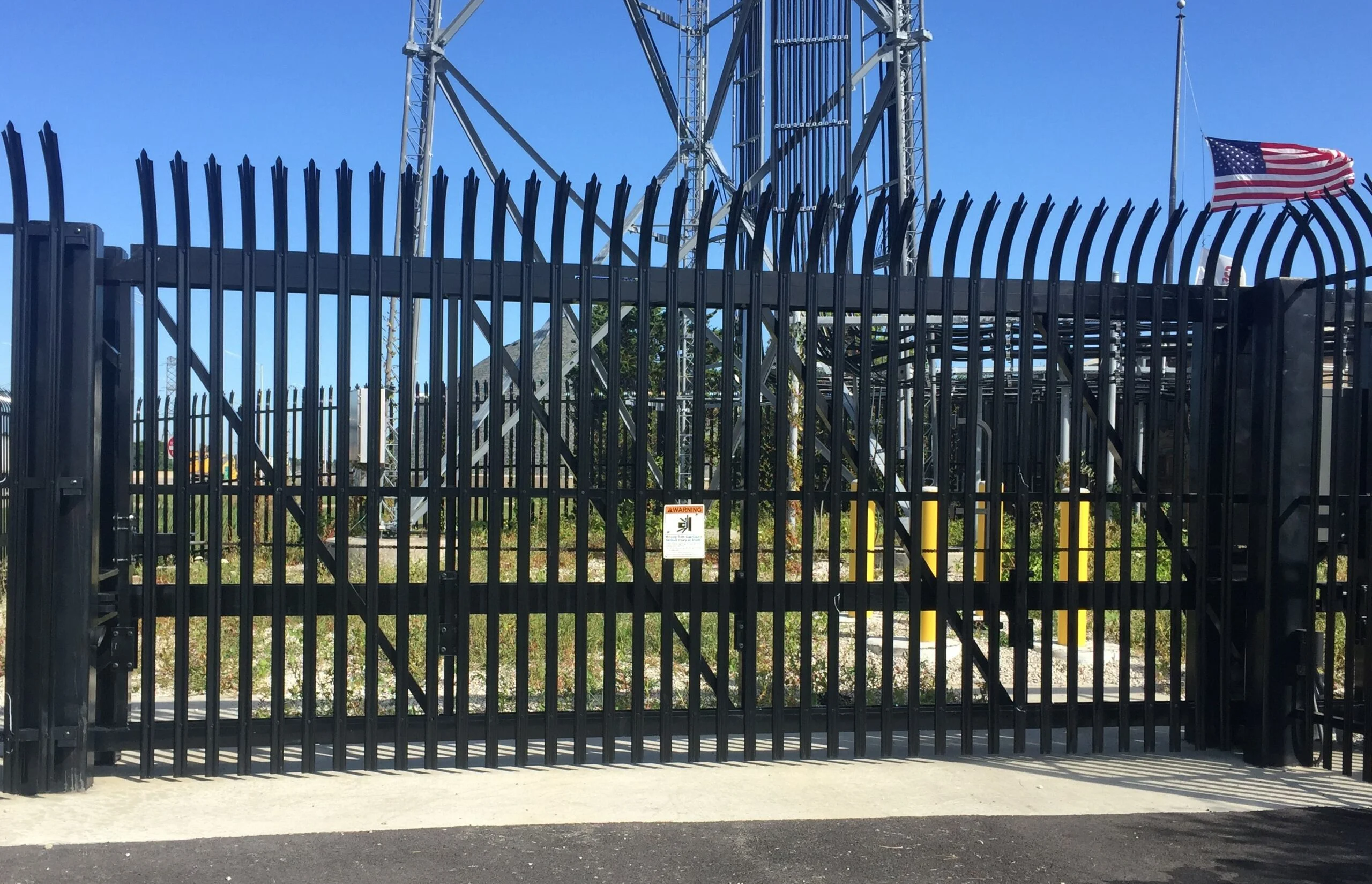

slide gate

Standard Features:

  • ASTM F2656-07 M50 P2 Certified (24′ – 28′)
  • (15,000 lbs @ 50 mph/ 6804 kg @ 80.5 kph)
  • Welded Tube Steel Framework
  • Wheel/Track Guiding System
  • Mechanical and Manual Operation
  • Immediate Reverse Operation

Optional Features:

  • Customizable Control Panels
  • Remote Control Panels
  • Visual Deployment Signals
  • Audio Alarms
  • Traffic Signals
  • Battery Backup System
  • Can be Suited to Aesthetically Match Existing Fencing

Contact Gibraltar Today

The G-5000 Series Anti-Ram Crash Gates provide optimal anti-vehicular, anti-terrorism, and pedestrian barrier protection and are a crucial part of Gibraltar’s anti-vehicular, anti-ram portfolio. For more information regarding the G-5500 or any other G-5000 Series crash gate, contact Gibraltar today. Or, simply complete the online form and a representative will reach out as soon as possible.
