Gibraltar: The Global Leader in Security Bollards

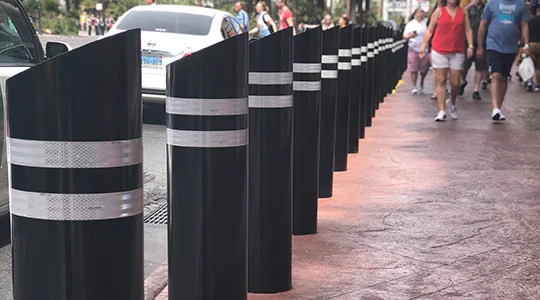

Gibraltar provides industry-leading security with the G-1000 Series of Anti-Ram Bollards. This diverse series offers anti-vehicle capabilities as well as controlled vehicle access and physical assistance with perimeter security concerns. Ideal for a number of clients across numerous sectors, G-1000 Series Anti-Ram Bollards are in place in multiple high- and medium-security settings in such large US markets as New York, Las Vegas and Washington DC.

Gibraltar’s Industry Leading Bollards

G-1000 Series Anti-Ram Bollards allow pedestrian travel while impeding vehicle access in numerous applications. The series contains a number of bollards with varying specifications and certifications, each ideal for setting a particular set of security perimeters. Bollard options include:

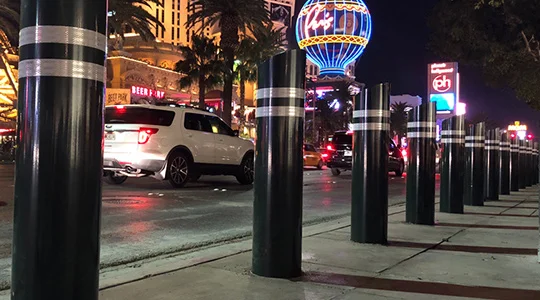

G-1350 Standard Passive Bollard

This bollard utilizes a standard, or “deep,” foundation and endured crash testing to ASTM F2656-07 specifications. At the conclusion of testing, the G-1350 received an M50 P1 (K12) certification. This product is included on the US Army Corps of Engineers (USACE) Department of Defense Anti-Ram Barrier List.

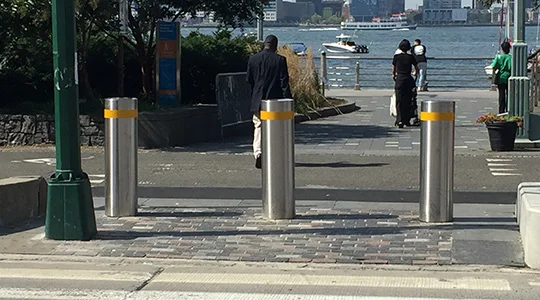

G-1150 Shallow Passive Bollard

This bollard utilizes a shallow, 12” foundation and experienced crash testing to ASTM F2656-07 specifications. Testing resulted in an M50 P1 (K12) certification. This product is listed as “M50 Shallow Foundation Bollard” on the USACE Department of Defense Anti-Ram Barrier list.

anti-ram bollards at the domain

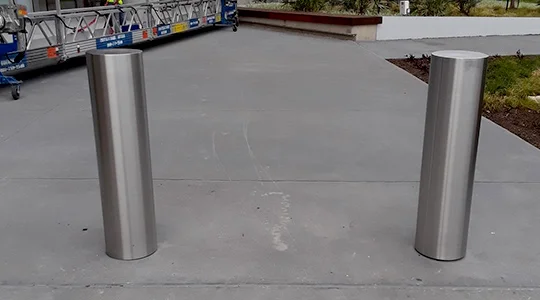

G-1131 Shallow Passive Bollard

The G-1131 utilizes a 12” shallow foundation and received crash testing to ASTM F2656-15 test specifications. This bollard was awarded an M30 P1 (K4) certification and allowed negative penetration of a 15,000-pound load at 30 mph. Gibraltar has the solution to your shallow passive bollard needs.

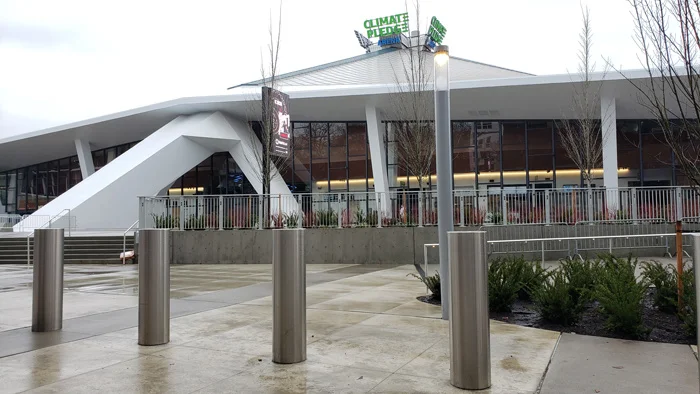

G-1140 Shallow Passive Bollard

This shallow bollard utilizes a 12” foundation and is rated based on extrapolated results from prior testing of this and other models. The product is engineered to absorb a 40 mph impact and calculated at M40 P1 (K8).

G-1050 Standard Passive Bollard

This standard depth bollard was designed, engineered, and tested by the US Department of State as the DS-22 bollard. It received a K12 impact rating and can absorb the impact of a 15,000-pound vehicle at 50 mph.

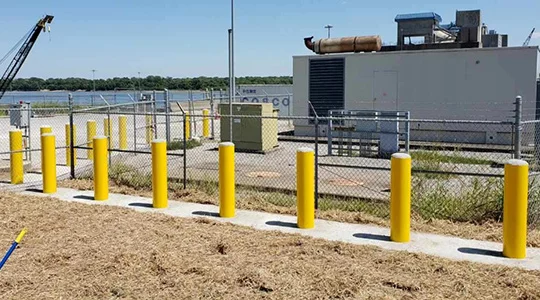

G-1040 Standard Passive Bollard

The standard or deep foundation is rated M40 P1 (K8), based on the extrapolated results from prior testing performed by Gibraltar. It is engineered to absorb the impact of a 15,000-pound vehicle traveling at 40 mph.

gibraltar passive bollards in front of a local business

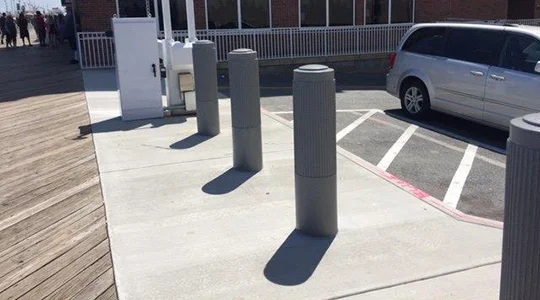

G-1030 Standard Passive Bollard

This standard, deep set bollard is engineer rated M30 P1 (K4) based on previous testing performed by Gibraltar on this model. It is capable of withstanding the impact of a 15,000-pound vehicle traveling at 30 mph.

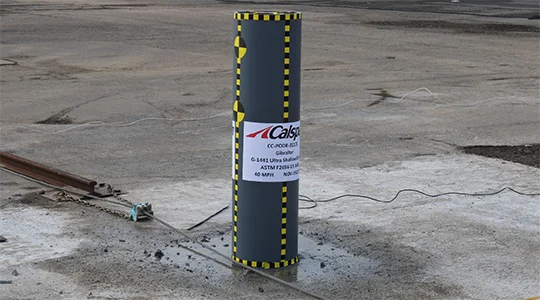

gibraltar's ultra shallow bollard

G-1441 Ultra-Shallow Bollard

This ultra-shallow foundation bollard is crash certified to ASTM F2656-15 M40 P1 test requirements. This shallow bollard utilizes only 5” (127mm) of foundation depth making it one of the shallowest bollards on the market today.

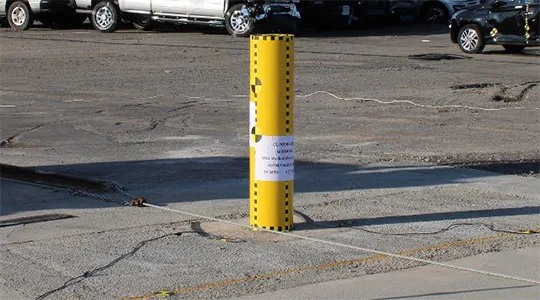

G-1442 Ultra-Shallow Bollard

This ultra-shallow mount bollard is crash certified to ASTM F2656-15 M40 P2 test requirements. The ultra-shallow bollard only requires 5” (127mm) of foundation depth. Trust Gibraltar for your ultra-shallow bollard needs.

Why Choose G-1000 Series Bollards?

A key feature of Gibraltar bollards is their diversity; clients from across the United States as well as around the globe choose G-1000 Series Anti-Ram Bollards to prevent vehicle attacks in a number of different settings. Gibraltar bollards are attractive and can be customized with aesthetic covers to match surrounding architecture. Yet, G-1000 Series bollards are a cost-effective solution for anti-vehicle security needs.

Additionally, bollards are available in multiple mount options, including removable mounts as well as standard depth, shallow mount, and ultra-shallow mount options as low as 5” (127mm). These mount options allow installation in a variety of existing terrains. Regardless of mount option and appearance, however, all G-1000 Series Bollards are crash tested, impact certified, or engineered via extrapolation of actual crash tested units for premium anti-ram capabilities.

All bollards are available in standard, hot-dipped galvanized steel or can be powder coated in multiple RAL codes. Additional, powder coated colors, painted colors, or aesthetic covers to match existing architecture can be added by special request.

Special request finishes, as well as additional information and specifications, can be acquired by contacting Gibraltar directly. Complete the online information request form at your earliest convenience and a member of our team will reach out to you as soon as possible.
