The Industry Leader in Crash Tested and Certified Safety Bollards

Our safety bollards have been crash-certified by a 3rd party independent test laboratory to ASTM F-3016-19 S30 P1 requirements.

Gibraltar Perimeter Security has certified three types of bollards to the S30 P1 level, giving end users the freedom of putting in a certified product no matter what type of bollard (fixed, removable, retractable) is required. On top of that Gibraltar tested and certified a single bollard unit, which allows for customizable spacing.

Gibraltar’s G-1631F is a fixed shallow mount safety bollard that requires only 8-inches of foundation depth for installation into a pre-existing sidewalk or concrete slab. The unit requires no rebar for installation making it a quick and simple certified solution, especially for existing buildings and sidewalks with underground utilities.

The G-1631R is a removable shallow mount safety bollard that requires only 8.5-inches of foundation depth for installation into a pre-existing sidewalk or concrete slab. The bollard foundation requires no rebar for installation which is ideal for existing buildings and sidewalks with underground utilities.

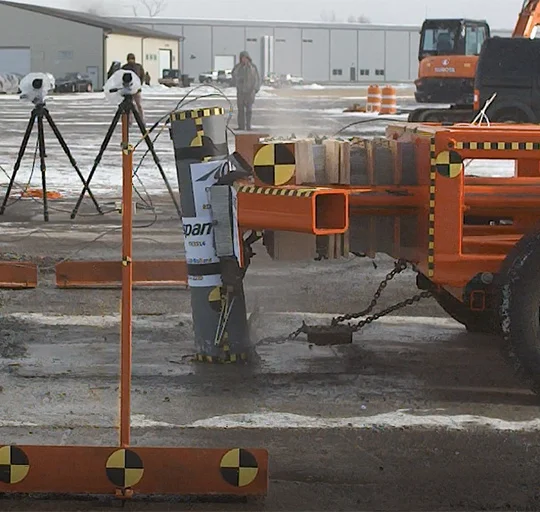

safety bollard testing
safety bollard diagram

Our G-1631D is a deployable standard mount safety bollard that requires 54” deep foundations. This active bollard unit can be operated manually by an 18-volt power drill or can be completely automated via an access control point system.

Our bollards were tested to the highest rating offered under ASTM F-3016-19, which allows us to extrapolate the test data and provide 3rd party engineer rated (calculation) options at the S10 and S20 test levels.

Gibraltar bollards can be coated to specification as we offer hot-dip galvanized to ASTM A123, powder-coat, and shop-coat finishes. Gibraltar also offers decorative sleeves that can be utilized to protect bollards from the elements.

For drawings and specifications on the G-1600 Series Safety Bollards, please contact us today!
